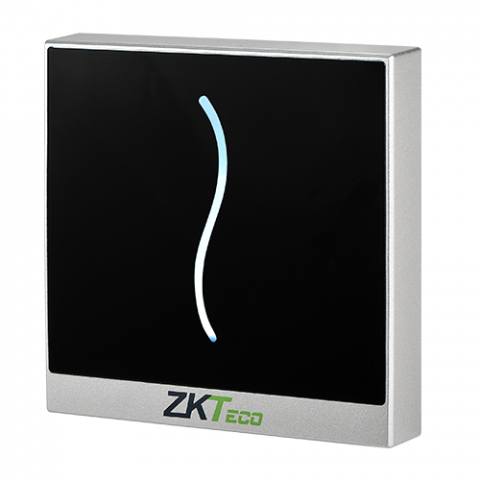

ZKTECO

Read Range  • ProID10 EM/IC  3.5cm  • ProID20/30/40 EM/IC : 5cm

Reading Time  • ≤300ms

Input Port  • External LED Control  • External Buzzer Control

Output Port  • Wiegand 26bit or 34bit adjustable

Power/Current  • Operating Voltage 7-13V DC / Current Draw < 80mA

LED  • Pulsing White Standby light • Pulsing

Operating Temperature  • -10°C to +65°C

Operating Humidity  • 10% to 90% relative humidity  • non-condensing

Audio  • BeepIndex Protection  • IP65

Dimensions  • ProID10: 80.5 × 44 × 15mm.

ProID20/30: 90 × 90 × 16mm. • ProID40: 116 × 75 × 15mm.
