SPECIFICATION

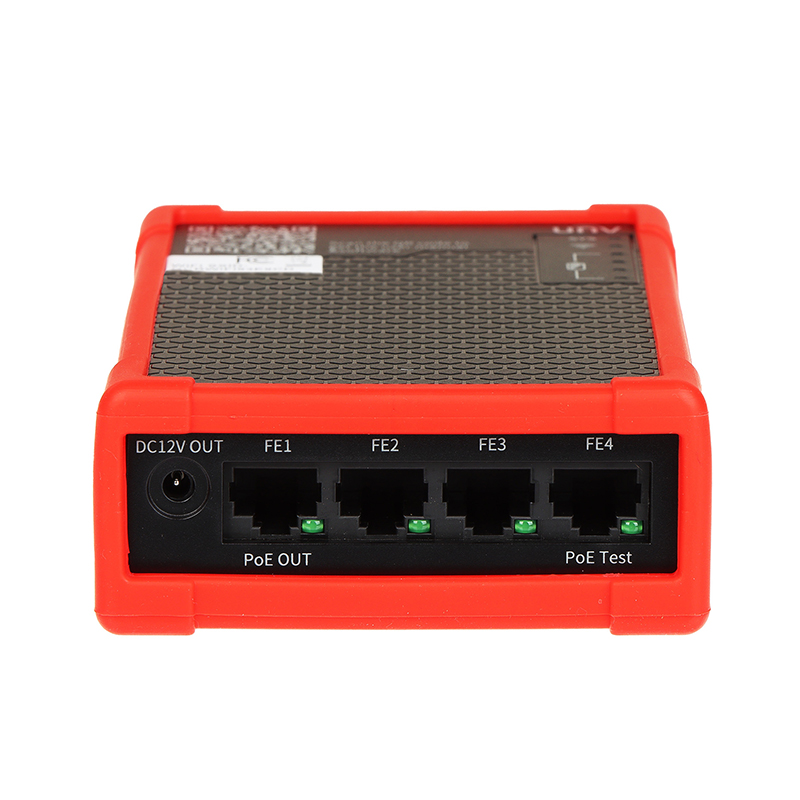

• Network : 4 x RJ45 10M/100M Base-TX Ethernet Network Port 1 Support POE (IEEE802.3af)

    Output Network Port 4 Support PSE Voltage Test

• Voltage Test : 1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE

    802.3at, IEEE 802.3bt)1 x DC voltage Test(DC voltage detection Range： 1V~56V)

• Wi-Fi  : 2.4G Wi-Fi (IEEE802.11b/g/n)

• Battery Capacity : 18650 lithium battery, 7500mAH

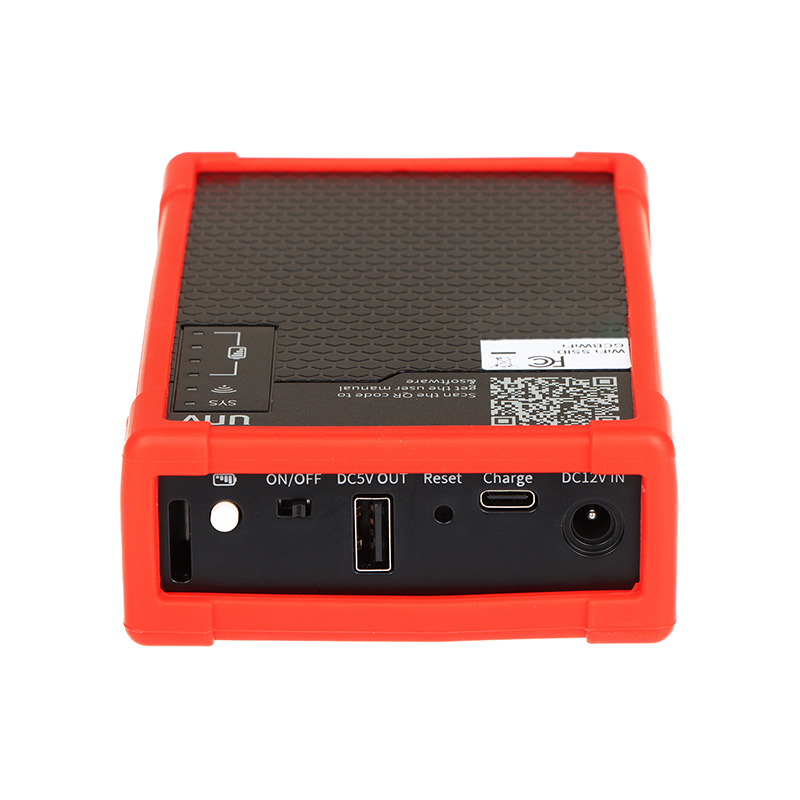

• Power Input : 1 x DC 5V/2A max, type-c

• Power Output : 1 x DC 12 V/1 A output; 1 x DC 5 V/1 A output, type-A

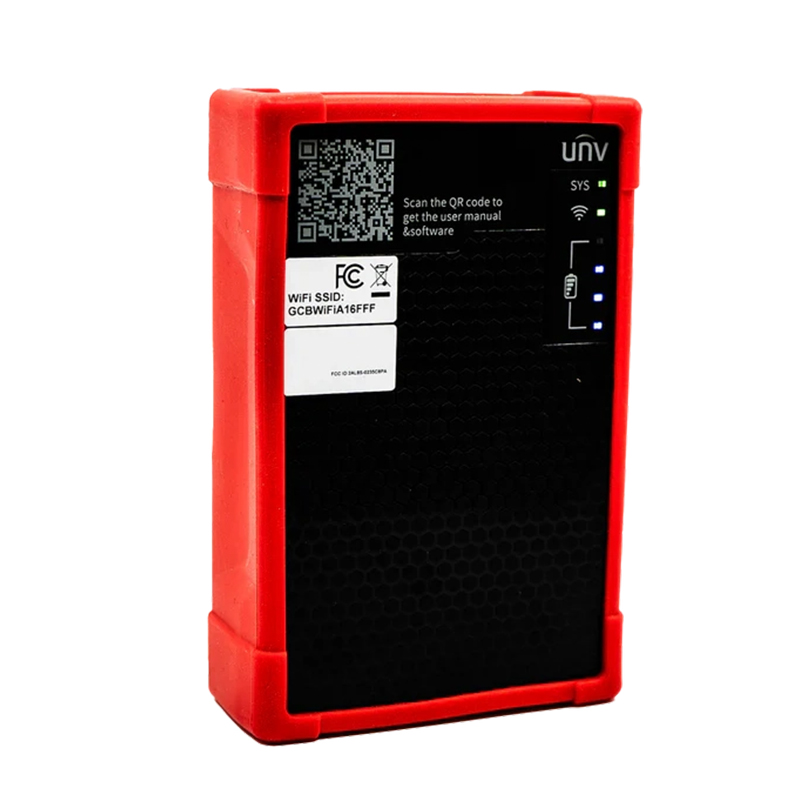

• LED Indicator : System indicator, Wi-Fi indicator, Battery indicator

• Dimensions : 130 × 85 × 33mm (5.1” × 3.3” × 1.3”) (L x W x H)

• Working Environment : -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)

• Reset Button : Support
