Specification

• Card reading frequency : 13.56MHz

• Power supply  : 12 VDC, ≤ 500 mA

• Power consumption : ≤ 2 W

• Working temperature : -20 °C to 65 °C (-4 °F to 149 °F)

• Working humidity : 10% to 90% (no condensing)

• Dimensions : 118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91")

• Installation : Applied for 86 & 120 Gang Box

• Weight : ≤ 0.52 kg (1.1 lb)

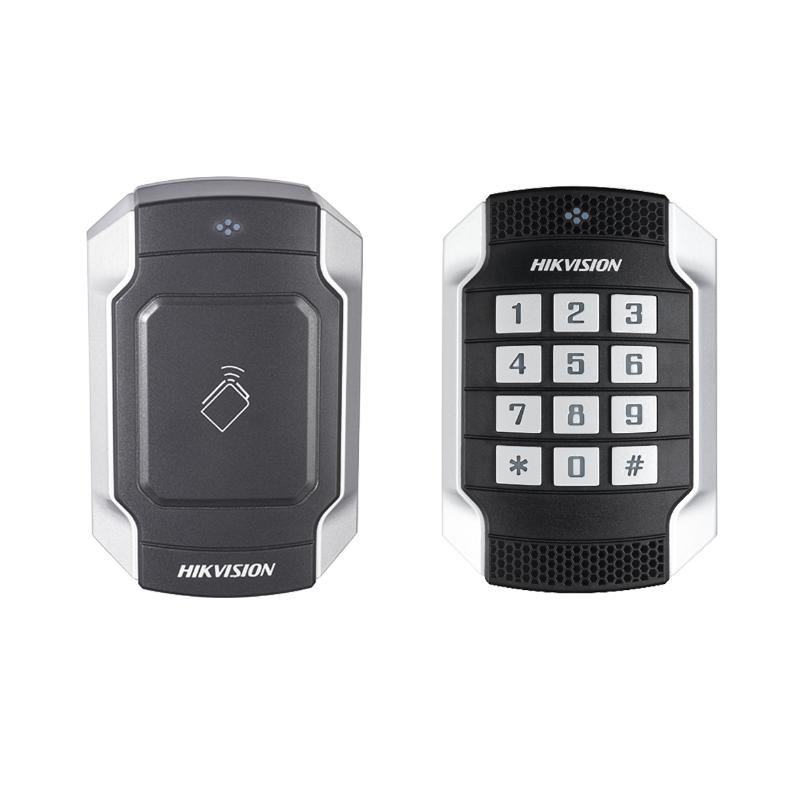

• Keypad : DS-K1104M: No keypad

              DS-K1104MK: Keypad with 12 keys (0 to 9, *, #)

• Buzzer : Support

• ID settings : via DIP Switch
